VPWS – Local Epipe Configuration

Local Epipe Configuration

In the previous part we have talked about the VPWS service of Nokia. Now, we will focus on the configuration of the VPWS Service on Nokia devices. In this lesson, we will learn Local Epipe Configuration. In the next lesson, we will learn Distributed Epipe Configuration.   As you know, there are types of VPWS. Epipe, Fpipe, Apipe, Cpipe and Ipipe are these types. The most important and widely used is Epipe service. So, here, we will start with Epipe service configuration.   Epipe service is the Point-to-Point Ethernet L2 VPN Service between two Service Routers as we have talked before. Ethernet is a widely used technology, so with ethernet, VPWS Epipe service become widely used beside other types.   As Other Nokia VPN Services, in VPWS the service configuration has some basic steps. In this configuration lesson, we will focus on these configuration steps, and we will show Epipe VPN Service configuration steps one by one.   For Epipe VPN Configuration we will create the service with service ID firstly. In the same command, we will also create a customer and link VPN service to this customer.Then, we will define SAPs and SDPs. pipe   Here, one point is important. If we are configuring a Local Epipe, an Epipe that is used on the same device, we will need to configure multiple SAPs and there is no need for SDP configuration.   If we are configuring a Distributed Service that need multiple device, then we need to configure also an SDP beside SAP or SAPs.   Aftet this two important terms, the last configuration step is “enabling the service”. We will enable our Epipe VPN Service.   Now, let’s configure two examples topoogy for Epipe VPN Service.   Here, we will configure a Local Epipe Service first and then we will configure a Distributed Epipe Service.

Required Configurations Before Epipe Configuration

Nokia Epipe Service configuration needs some pre configuratiions as all the other Service configurations. What are these preconfigurations? These preparation steps are given below:

• Build the IP (GRE) or IP/MPLS core network.
• Configure Routing Protocols (OSPF,ISIS etc.)
• Configure MPLS LSPs (if MPLS is used).
• SDPs must be created.
• Accounting Policies, Schedular Policies, QoS Policies and Filters must be configured .

  These steps and pre configurations are required in all Service Provider networks that provide VPN Services. This is also required for Epipe VPN Service.

Local Epipe Service Configuration

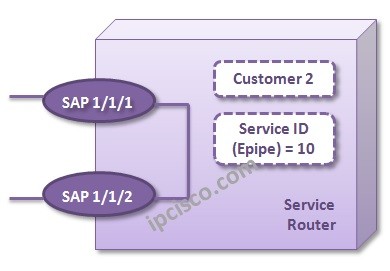

For Local Epipe Service Configuration, we will use the below topology. This is a basic router not a topology exactly. Because, Local Service Configuration is done in the same device. The first step is creating Epipe VPN Service with Service-ID. In the same command we will create a customer and link this service to the customer.   Nokia-Router-1# config Nokia-Router-1>config# service Nokia-Router-1>config>service# epipe 10 Nokia-Router-1>config>service>epipe# customer 2 create   Under the service, we will also configure a description. And we must “no shutdown” the service.   Nokia-Router-1>config>service>epipe# description “Local-Epipe” Nokia-Router-1>config>service>epipe# no shutdown   Now, we will configure the SAPs under this Service. We have service configuration but there is nobody to send and receive on this service. We will configure these end points, SAPs.   Here, we will also define the encapsulation type firstly. Encapsuation is configured with “ethernet encap-type {dot1q|null|qinq}” command. For one customer and one service per port, we will configure this port encapsulation as null.   Nokia-Router-1>config# port 1/1/1 Nokia-Router-1>config>port# ethernet encap-type null Nokia-Router-1>config>port# exit Nokia-Router-1>config# service epipe 10 Nokia-Router-1>config>service>epipe# sap 1/1/1 create Nokia-Router-1>config>service>epipe>sap# no shutdown Nokia-Router-1>config>service>epipe>sap# exit Nokia-Router-1>config>service>epipe# sap 1/1/2 create Nokia-Router-1>config>service>epipe>sap# no shutdown Nokia-Router-1>config>service>epipe>sap# exit   To verify our VPWS Configuration, we can check the service configuration by “info” command under the service.   Nokia-Router-1>config>service# info ———————————————- Epipe 10 customer 2 create description ” Local-Epipe ” sap 1/1/1:0 create exit sap 1/1/2:0 create exit no shutdown exit In the second example, we will show the other VPWS Verification commands one by one. For the second Epipe example, Ditributed Epipe Configuration, you can continue with the other lesson.
