Static Route Configuration on Juniper Routers

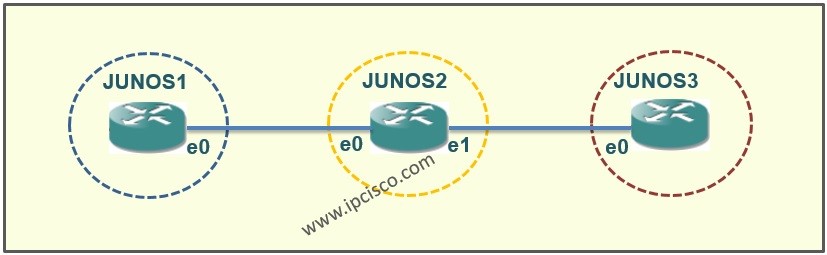

In this article we will focus on static route configuration on Juniper routers. Here, we will use Juniper JuNOS and we will be familiar with some JuNOS commands. The basic topology that we will use is below. We have three routers and two network. We will provide the route from one network to another.   Juniper Static Route Configuration Example TopologyFirst of all we will give IP addresses to the interfaces. On JUNOS1 Router use the below commands to assign an ip to the interface em0.

root@JUNOS1> configure
[edit]
root@JUNOS1# edit interfeces em0
[edit interfaces em0]
root@JUNOS1# edit unit 0
[edit interfaces em0 unit 0]
root@JUNOS1# edit family inet
[edit interfaces em0 unit 0 family inet]
root@JUNOS1# set address 10.0.0.1/24
[edit interfaces em0 unit 0 family inet]
root@JUNOS1# commit

On JUNOS2 Router you can use the full command in only one line like below. But here we have two interfaces, so we will give to ip addresses that are in different network.

root@JUNOS2> configure
[edit]
root@JUNOS2# set interfeces em0 unit 0 family inet address 10.0.0.2/24
[edit]
root@JUNOS2# set interfeces em1 unit 0 family inet address 172.29.2.2/24
[edit]
root@JUNOS2# commit

For the last router, JUNOS3 Router use the below commands. Here we can also give ip address to the second interface but there is no device is connected to that interface. [sc name=”ContentRMessage”] Other Static Routing Lessons on Other Vendors IPv4 Static Route Configuration on Cisco IPv6 Static Route Configuration on Cisco IPv6 Default Route Configuration on Cisco IPv4 Static Route Configuration on Juniper IPv6 Static Route Configuration on Juniper IPv6 Static Route Configuration on Juniper IPv4 Static Route Configuration on Nokia IPv4 Default and Floating Route Configuration on Nokia St Route Configuratioatic Route on Huawei and Load Balancing IPv4 Default and Floating Route Configuration on Huawei
