Link Aggregation – Part 1 (Link Aggregation Control Protocol, LACP)

Link Aggregation Control Protocol (LACP)

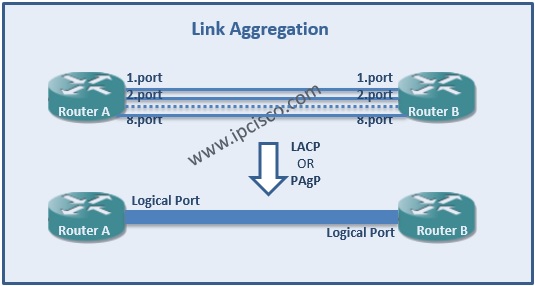

  Link Aggregation on Cisco DevicesTo aggragete links to a single logical link, firstly we need more than two ports with the same characteristics such as data rate, duplex capability, etc.. The ports can be in different interfaces, this is not important.   There is also a limitation about ports in the bundle. In Cisco platforms the ports in a bundle is limited by 8ports . This can be change in some platforms. For example in Cisco 10000 series, only 4 port is supported in a bundle.   This bundle is called Link Aggregation(LAG) generally.   [sc name=”ContentRMessage”]
